Concrete is one of the most important building materials in the world — and for good reason. From the foundations beneath your feet to the bridges you drive over, concrete’s versatility, strength, and durability make it a construction superstar. You’ll find it in small backyard projects like garden paths and patios, as well as in massive engineering marvels like skyscrapers, dams, and tunnels.

Yet despite its popularity, many people misunderstand concrete. They might think it’s just “cement” or believe that you can throw together any combination of sand, gravel, and water and get the same result. In reality, concrete is a carefully engineered mixture. The right type, correct proportions, and precise volume measurements are what separate long-lasting, crack-free concrete from something that crumbles in a few seasons.

Choosing the right type of concrete is like picking the right tool for the job — each type has strengths and weaknesses. Mix proportions, on the other hand, are the recipe: too much water and your concrete will be weak, too little and it becomes unworkable. And finally, measuring in cubic meters ensures you don’t end up halfway through a pour with no concrete left in the mixer or a driveway you didn’t mean to make twice as thick.

In this guide, we’ll go deep into:

• The different types of concrete and where each one works best.
• Mix ratios and how they affect strength.
• How to calculate cubic meters and convert them into actual material quantities.

By the end, you’ll have a complete toolkit for understanding, ordering, and mixing concrete with confidence — whether you’re patching a small slab or building a reinforced foundation.

2. What is Concrete?

Before we start talking about types and proportions, let’s get clear on exactly what concrete is — and what it isn’t.

At its core, concrete is a composite material made of:

1. Cement – the binder that reacts with water to create a paste.
2. Aggregates – coarse aggregates (gravel or crushed stone) and fine aggregates (sand) that give concrete bulk and strength.
3. Water – the activator that triggers the chemical reaction.

When cement and water mix, they undergo a chemical process called hydration. Tiny crystals begin to grow, locking the sand and gravel together in a rock-like mass. This process is slow — it takes around 28 days for concrete to reach most of its design strength, though it begins hardening in hours.

Cement vs. Concrete

Many people use the words cement and concrete interchangeably, but they’re not the same. Cement is just one ingredient in concrete — think of it like flour in a cake. You can have cement without concrete, but you can’t have concrete without cement.

Additives and Admixtures

Modern concrete often includes admixtures — special chemicals or mineral additives that change its properties. For example:

• Plasticizers – make concrete more workable without adding extra water.
• Retarders – slow down setting time (useful in hot climates).
• Accelerators – speed up setting time (useful in cold climates).
• Pozzolans – like fly ash or silica fume, improve long-term strength and reduce permeability.

Water–Cement Ratio

One of the most important factors in concrete’s strength is the water–cement ratio (w/c ratio), which is the weight of water divided by the weight of cement.

• Low w/c ratio (around 0.4) → stronger but less workable concrete.
• High w/c ratio (above 0.6) → easier to work with, but weaker when cured.

Balancing this ratio is key. Too much water makes the paste thin and porous, reducing durability. Too little water makes it hard to mix and place, leading to voids.

Why Understanding the Basics Matters

If you grasp how concrete works at the ingredient level, you’ll better understand why different types exist, why mix ratios matter, and why volume calculations can’t be left to guesswork.

If you’re ready, the next section dives into the 6 main types of concrete — starting with Plain Concrete, the most basic form.

3. Types of Concrete

Concrete isn’t one-size-fits-all.

While all concrete shares the same basic ingredients — cement, aggregates, and water — the way those ingredients are proportioned, treated, and reinforced creates very different performance characteristics. Choosing the wrong type can lead to poor strength, cracks, or even total failure.

Here are six of the most widely used concrete types, explained in depth.

3.1 Plain Concrete

Plain concrete, also called ordinary concrete, is the simplest form. It contains cement, sand, gravel, and water — nothing more, nothing less. It has no reinforcement, which means it’s strong in compression but weak in tension (it cracks easily under bending forces).

Common Mix Ratios

For plain concrete, typical nominal mixes are:

• 1:2:4 → Cement : Sand : Gravel (medium strength, general use)
• 1:3:6 → Lower cement content for non-structural applications

These are volume-based ratios, meaning for every 1 bucket (or box) of cement, you add 2 buckets of sand and 4 buckets of gravel.

Strength and Properties

• Compressive strength: 10–20 MPa
• Not suitable for heavy structural loads without reinforcement
• Works well for areas where the main forces are compression

Where It’s Used

• Pavements and walkways
• Small foundations for sheds or garden walls
• Levelling courses below reinforced foundations

Advantages

• Simple and inexpensive
• Easy to mix and place
• Minimal technical knowledge required

Disadvantages

• Cracks under tension or bending
• Not suitable for load-bearing structural members

3.2 Reinforced Concrete (RCC)

Reinforced Concrete is plain concrete with steel reinforcement — usually steel rebar or welded wire mesh. The idea is to combine concrete’s high compressive strength with steel’s high tensile strength, creating a material that can handle both squeezing and pulling forces.

Why Steel Works with Concrete

• Similar thermal expansion rates: Steel and concrete expand/contract at similar rates when heated or cooled, reducing stress.
• Bonding: The rough surface of steel rebar bonds well with concrete, especially when hooks, bends, or ribbed patterns are used.

Common Mix Ratios

• 1:1.5:3 → Higher cement content for strength
• Water-cement ratio usually 0.4–0.5

Strength and Properties

• Compressive strength: 20–40 MPa
• Excellent structural performance in beams, slabs, and columns

Where It’s Used

• Building frames (columns, beams, slabs)
• Bridges and overpasses
• Retaining walls
• Any load-bearing structure

Advantages

• Handles both tension and compression
• Long service life when properly designed
• Versatile for many structural forms

Disadvantages

• More expensive than plain concrete
• Requires skilled placement and vibration to ensure full coverage of rebar

3.3 Lightweight Concrete

Lightweight concrete is made by replacing normal gravel with lightweight aggregates such as:

• Expanded clay
• Pumice
• Perlite
• Vermiculite

Sometimes air-entraining agents are used to create foam-like bubbles in the mix.

Density and Properties

• Density: 800–1,800 kg/m³ (normal concrete is ~2,400 kg/m³)
• Lower weight reduces load on foundations
• Good thermal and sound insulation

Common Mix Ratios

• Highly variable depending on aggregate type
• Often 1:1.5:3 or 1:2:4 with lightweight stone

Where It’s Used

• Roof slabs to reduce structural load
• Insulating screeds
• Precast wall panels

Advantages

• Reduces dead load on buildings
• Better insulation
• Easier to transport and place

Disadvantages

• Lower compressive strength compared to normal concrete

• Can be more expensive due to special aggregates

• Higher cost compared to site-mixed concrete

3.4 High-Strength Concrete

High-strength concrete is specially formulated to achieve compressive strengths above 40 MPa (megapascals), with some mixes reaching 100 MPa or more. This type is essential in projects where structural demands are extreme, such as skyscrapers, bridges, and heavy industrial floors.

Key Features

• Low water–cement ratio: Usually around 0.3 to 0.4, which increases strength but reduces workability.
• High-quality materials: Uses carefully selected aggregates, often crushed stone with specific size gradations.
• Additives: Frequently contains admixtures like silica fume, fly ash, or superplasticizers to improve strength and workability.
• Dense microstructure: This results in lower permeability, making it highly durable against weathering and chemical attack.

Typical Mix Ratio

High-strength concrete mixes are usually designed mixes rather than nominal. An example might be:

Component	Proportion (by weight)
Cement	                 1
Fine Aggregates          1.5
Coarse Aggregates	 2
Water                    0.3–0.4 (w/c ratio)

Because this mix is sensitive to water content, it requires precise batching and mixing equipment.

Common Uses

• High-rise building columns and beams
• Bridge decks and supports
• Pre-stressed concrete elements
• Industrial flooring exposed to heavy loads

Advantages

• Exceptional compressive and tensile strength (when reinforced)
• Superior durability and resistance to environmental damage
• Allows for slimmer structural elements, saving space and materials

Disadvantages

• Requires strict quality control during mixing and placing

• Higher material costs, especially due to additives
• Reduced workability without admixtures, requiring skilled labor

3.5 Precast Concrete

Precast concrete is cast in molds at a factory or off-site location and then transported to the construction site. This method ensures high quality control and speed of construction.

Key Features

• Manufactured under controlled conditions
• Can be reinforced or prestressed depending on design
• Includes elements like beams, slabs, columns, pipes, wall panels, stairs

Typical Mix Ratios

Precast concrete often uses high-strength mixes, typically:

• 1:1.5:3 or specially designed mixes tailored for specific elements.

The mix is designed for durability, surface finish, and ease of demolding.

Common Uses

• Modular building parts (walls, stairs)
• Bridge girders
• Drainage pipes and culverts
• Facade panels and cladding

Advantages

• Consistent quality and finish
• Faster on-site assembly, reducing labor costs
• Better curing conditions improve strength and durability
• Less weather dependency during casting

Disadvantages

• Transportation logistics can be complex and costly
• Limited size and shape by transport constraints
• Requires heavy lifting equipment on site

3.6 Ready-Mix Concrete

Ready-mix concrete is produced in a batching plant and delivered to the construction site in a rotating drum truck. This is one of the most convenient and popular methods for medium to large construction projects.

Key Features

• Precise control of mix proportions at the plant
• Delivered fresh and ready to place
• Mix designs vary from basic to high-strength based on project

Typical Mix Ratios

Varies widely but includes nominal and design mixes. For example:

• 1:2:4 for general construction
• High-strength mixes for structural elements

Water content is controlled, and admixtures are added as per specification.

Common Uses

• Large slabs and foundations
• Commercial building projects
• Road and highway construction
• Residential concrete pours

Advantages

• Saves time and labor at site
• Reduces errors in mixing proportions
• Consistent quality and strength
• Can be ordered in exact volumes

Disadvantages

• Requires site access for trucks
• Concrete must be placed within a limited time window (usually 90 minutes)

• Higher cost compared to site-mixed concrete

4. Concrete Mix Proportions

Mix proportions are the recipe for concrete — they determine strength, durability, workability, and cost. Too much cement and your concrete becomes unnecessarily expensive (and prone to shrinkage cracks). Too little cement and it may fail under load.

Concrete mix proportions are usually given as a ratio of:

Cement : Sand : Coarse Aggregate

These ratios are by volume unless stated otherwise.

4.1 Nominal Mixes vs. Design Mixes

• Nominal Mixes: Fixed ratios (like 1:2:4) used for small projects where exact strength isn’t critical. Easy to remember and use.
• Design Mixes: Ratios are calculated based on specific performance requirements (strength, workability, durability) using lab tests and standards.

4.2 Common Nominal Mix Ratios

Mix Ratio	Cement	Sand	Gravel	Approx. Strength (MPa)	   Common Uses
1:3:6	          1	 3	   6	          ~10	           Non-structural work, pathways
1:2:4	          1	 2	   4	          ~20	           Slabs, beams, foundations
1:1.5:3	          1	1.5	   3	         ~25–30	           Heavy structural work
1:1:2	          1	 1	   2	          ~35+	           High-strength requirements

Note: MPa = Megapascal, a unit of compressive strength.

4.3 Water–Cement Ratio (w/c Ratio)

The w/c ratio is the weight of water divided by the weight of cement.

• Low ratio (0.4–0.45) → Stronger, denser concrete but less workable.
• High ratio (0.55–0.6) → More workable, but weaker when cured.

General guidelines:

• Structural concrete: 0.4–0.5
• Mass concrete: 0.55–0.6

4.4 Batching by Volume vs. Weight

• By Volume: Using buckets, measuring boxes, or wheelbarrows — common on small sites.
• By Weight: Using weigh-batching machines — more accurate, used for high-quality work and large projects.

4.5 Example — Mixing 1 m³ of 1:2:4 Concrete

Approximate material requirements:

• Cement: ~7 bags (50 kg each)
• Sand: ~0.44 m³
• Gravel: ~0.88 m³
• Water: ~175–200 liters (depending on w/c ratio)

5. How to Calculate Concrete Volume in Cubic Meters

Concrete is usually ordered or mixed by volume, and in most countries, the standard unit is the cubic meter (m³). One cubic meter is a cube that measures 1 meter on all sides.

If you underestimate, you risk running out halfway through a pour — a nightmare for structural integrity. If you overestimate too much, you waste money and materials.

5.1 Basic Formula

For simple rectangular shapes:

Volume (m³)=Length(m) × Width(m) × Thickness(m)

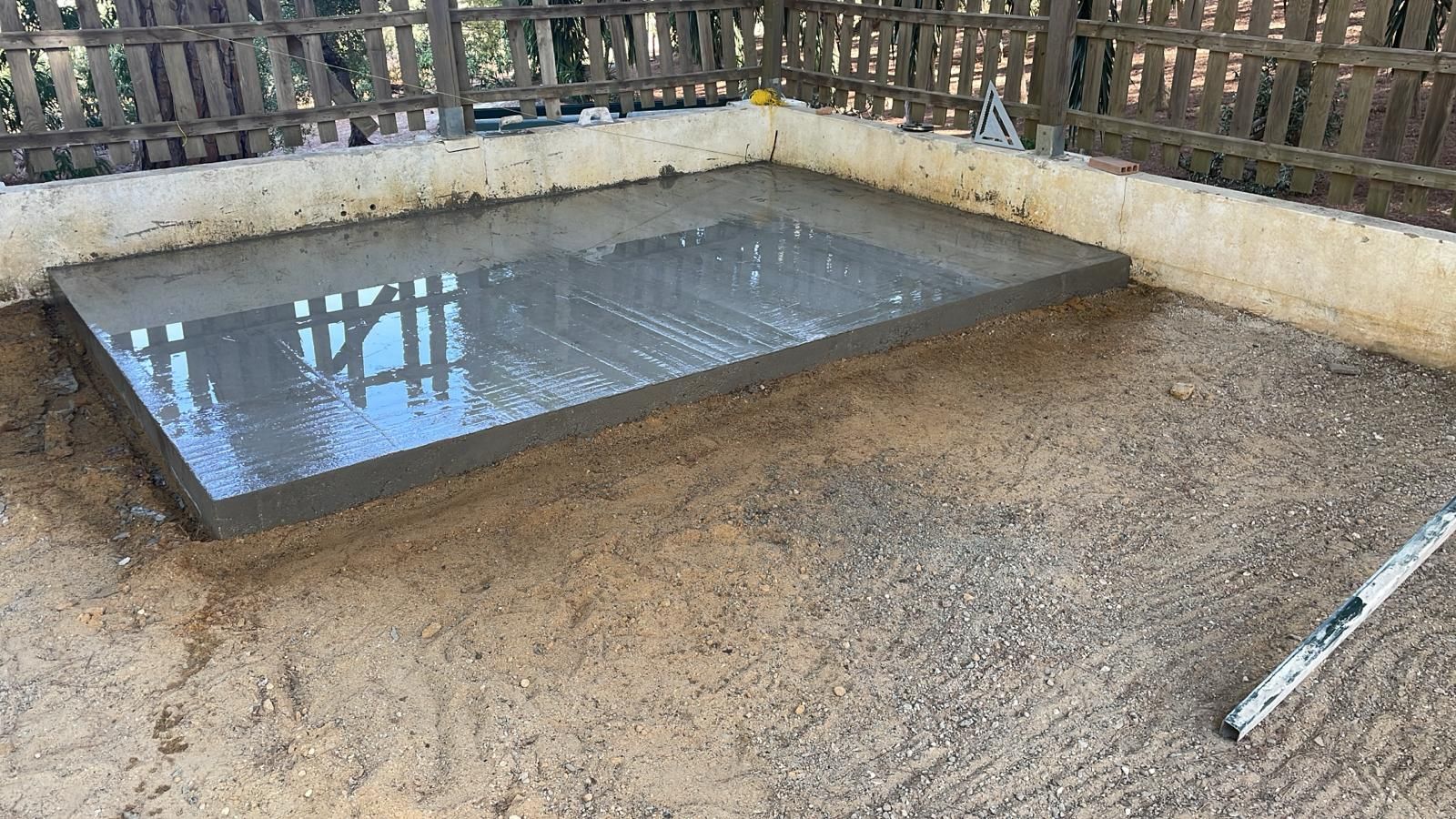

5.2 Example 1 — Concrete Slab

Suppose you want to pour a driveway slab 5 meters long, 2.5 meters wide, and 0.15 meters thick.

Volume = 5 × 2.5 × 0.15
Volume = 1.875𝑚3

You’d order at least 1.9 m³, and ideally 5–10% more for wastage:

1.875 +(1.875 × 0.1) ≈ 2.06𝑚3

5.3 Example 2 — Concrete Column

A column 0.3 m × 0.3 m in cross-section and 3 m tall:

0.3 × 0.3 × 3 = 0.27𝑚3

5.4 Example 3 — Cylindrical Shape (e.g., Round Footing)

Formula for volume of a cylinder:

Volume = 𝜋 × 𝑟2 × ℎ

Where:

• r = radius (m)

• h = height (m)

If the diameter is 0.5 m, radius = 0.25 m, height = 0.6 m:

Volume = 3.1416 × (0.25)2 × 0.6≈ 0.1178𝑚3

5.5 Irregular Shapes

• Break the shape into smaller rectangles, cylinders, or triangles.

• Calculate each part separately and sum the results.

5.6 Wastage Allowance

Always add 5–10% extra to your calculation for:

• Spillage during mixing/transport
• Over-excavation in foundations
• Uneven formwork depths

6. Converting Volume to Material Quantities

Once you know the total concrete volume (m³), the next step is breaking it down into the amounts of cement, sand, gravel, and water needed for your chosen mix ratio. This is crucial for both cost estimation and ensuring you have everything ready before mixing begins.

6.1 Standard Material Yield for 1 m³ of Concrete

Here’s an approximate guide for a 1:2:4 mix (Cement : Sand : Gravel) with a water–cement ratio of 0.5:

Material	    Quantity per m³	                 Notes
Cement	       ~7 × 50 kg bags (≈ 350 kg)	OPC 42.5 or equivalent grade
Sand	         ~0.44 m³ (≈ 650–700 kg)	   Clean, well-graded
Gravel	       ~0.88 m³ (≈ 1,050–1,100 kg)	   20 mm nominal size
Water	             ~175 liters	         Adjust based on workability

6.2 How to Calculate for Your Volume

Formula:

Material needed = Quantity per m³ × Total Volume (m³)

Example — Driveway Slab (2.06 m³ from Section 5):

• Cement: 7×2.06≈14.42 bags → round up to 15 bags
• Sand: 0.44×2.06≈0.91m3
• Gravel: 0.88×2.06≈1.81m 3
• Water: 175×2.06≈361liters

6.3 Quick Reference Table

Mix Ratio	Cement (bags/m³)	Sand (m³/m³)	Gravel (m³/m³)
1:3:6	              5.5	            0.48	     0.86
1:2:4	               7	            0.44	     0.88
1:1.5:3	              8.5	            0.42	     0.84

6.4 Pro Tips

• Always buy slightly more materials than calculated to cover variations in aggregate size and moisture.
• If batching by volume on-site, use a consistent container size for all ingredients.
• Store cement in a dry place to prevent setting before use.
